Multi point gunner restraints (GRS)

The Gunner Restraint System (GRS) or Top Cover Harness is designed and successfully tested to keep the standing occupant within the secure confines of the vehicle. The system is designed with a wide range of adjustment to be worn over the uniform and protective gear. The harness has a central single point release for rapid egress or extrication. The GRS can be attached with single or dual automatic (inertia reel) tail straps to the floor of the vehicle which offers the maximum of safety with its retracting tail strap(s) which store excess webbing and allows controlled movement. The GRS harness can be adapted to many ground vehicles and different user requirements.

SCHROTH GRS Flyer 2021

GRS Flyer 2021

Main Features:

Central Release Buckle:

• Mine blast/shock resistant
• Single point release for rapid egress
• Releases all straps
• Left and right hand release
• Operable with gloved hand
• Additional buckle options available (US Army standard “dual motion” & ECE push button)

Quick Release Tail Straps:

• Push button buckle to release tail strap(s) from main system
• Operable with gloved hand

Labeling & Use:

• Color coded shoulder, lap and crotch belts to ease donning of system
• Color coded release tabs (red) for easy use
• Operable with gloved hand

Adjustability:

• Fits 5% to 95% user (including body armor)
• Multiple adjustments for comfortable fit
• Color coded release tabs (red) for easy use
• Integrated retaining hardware to keep the extra webbing in place
• Operable with gloved hand

Vehicle Attachment Options:

• Self retracting tail strap(s) which store excess webbing and allow for controlled movement
• Static with adjustable connection to vehicle

Tail Strap Options:

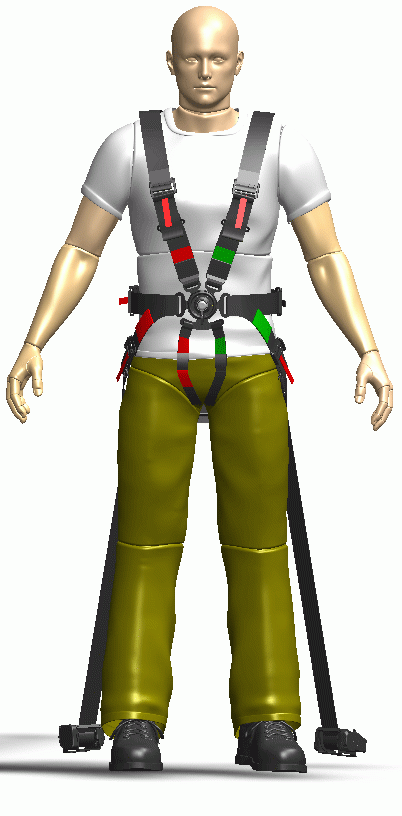

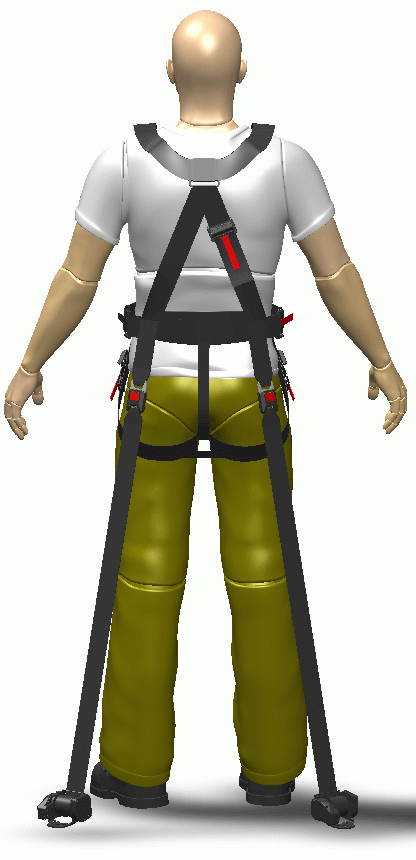

• Two symmetric attachments on rear hips or

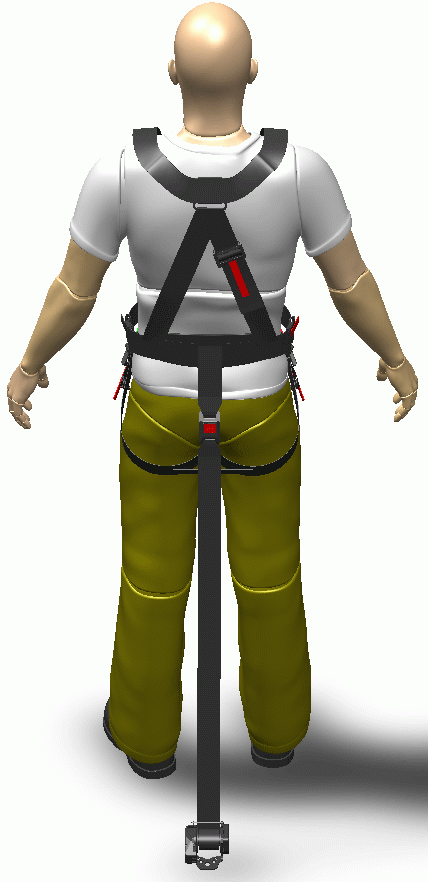

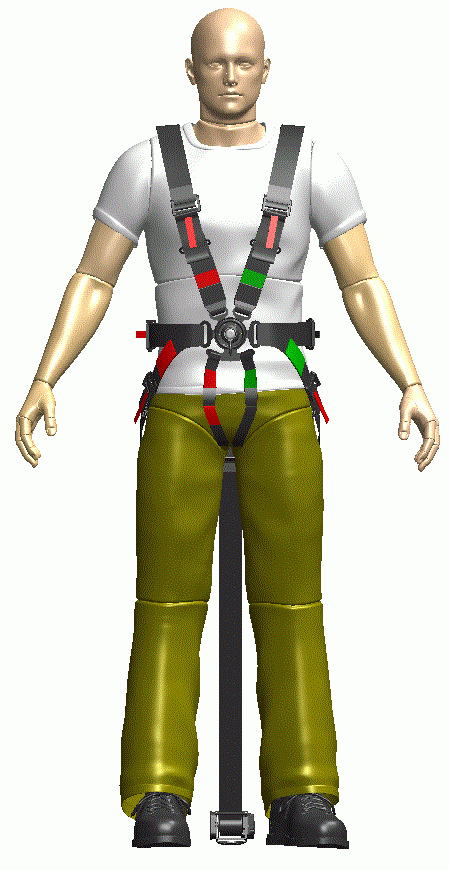

• Single central attachment on middle-rear of system

Quality Assurance:

• All manufacturing processes & components meet or exceed applicable ECE/FMVSS and/or FIA standards for restraint systems

50mm Webbing:

• Additional comfort with load spreading memory effect webbing only from SCHROTH
• UV & chemical resistant polyester material
• Available in black or tan

Custom Applications:

• Systems may be adapted to many ground vehicle applications. SCHROTH can assist with interface, integration, installation and user requirements that may be required
