Webbing that makes the difference

The webbing we use is especially designed and manufactured for SCHROTH. Each lot manufactured must pass our stringent quality control procedures. SCHROTH only uses Polyester material. Polyester has advantages over Polyamide (NYLON®) webbing. Advantages, such as lesser degradation under light (see figure 1) and a resistance against acids like battery acid. In addition Polyester does not absorb moisture so the performance of SCHROTH harnesses do not change whatever the climate may be. Polyester also has a better force/elongation ratio so a well designed webbing can dissipate more energy during an accident.

Unique to SCHROTH is the „memory effect“ we have designed into our webbing. Special mono fi laments laterally woven in, perform like small leaf springs and keep the webbing flat. This results in better load spreading over the full width of the SCHROTH webbing. An additional advantage of the SCHROTH webbing: The special weaving technology forms round edges for additional comfort (see figure 2).

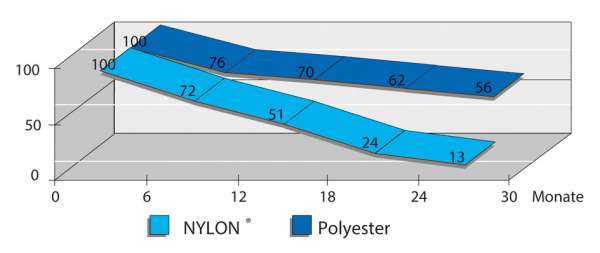

Figure 1: Remaining strength in percent over a 2 year period
Figure 1: Remaining strength in percent over a 2 year period

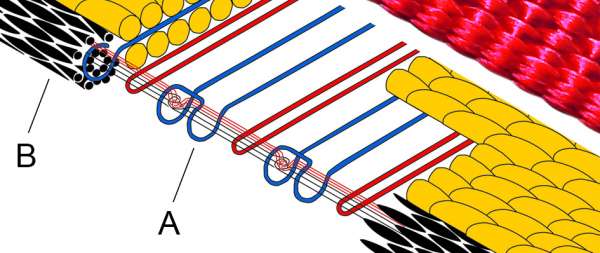

Figure 2: A points to the woven in mono filaments, responsible for the “memory effect”. B points to the round edges for additional comfort
Figure 2: A points to the woven in mono filaments, responsible for the “memory effect”. B points to the round edges for additional comfort

Plating options

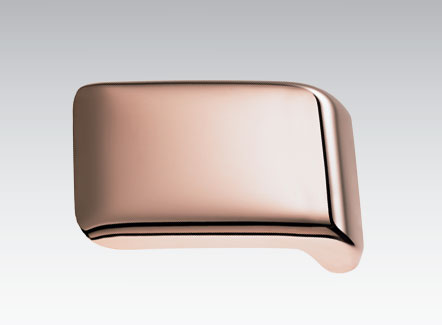

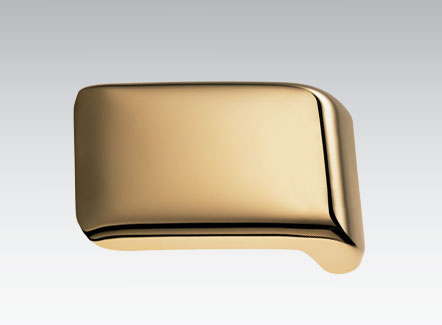

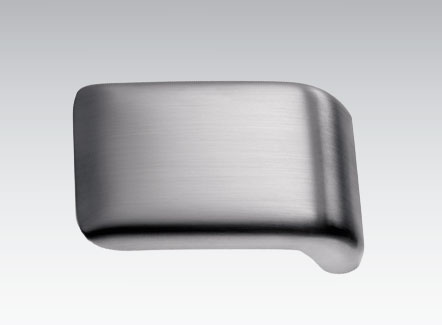

The illustrations show our most popular plating options. Virtually hundreds of magnificent combinations are available. We can also supply requested custom dye. Please ask us to match your individual style. Samples are available upon request.

Engraving options

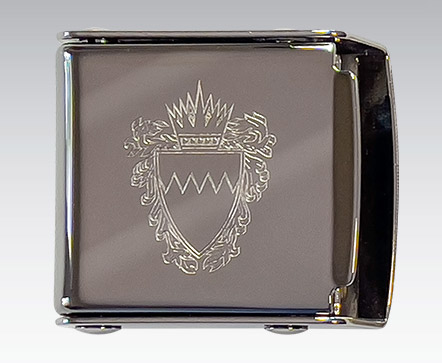

The illustrations show examples of our in-house engraving capabilities for Airlines and Business/VIP customers. With SCHROTH, you can custom your seatbelts with your company logo or family crest. Please ask us to match your individual style. Samples are available upon request.
